DataViews

Overview

Screens built on your tables, published to the roles that use them.

In the admin: DataViews

A DataView is a screen over your data: a grid of work orders, a kanban board by status, a map of sites, a form a technician fills on a phone. You build it in the admin, without writing a backend, and your users open the published version in the App.

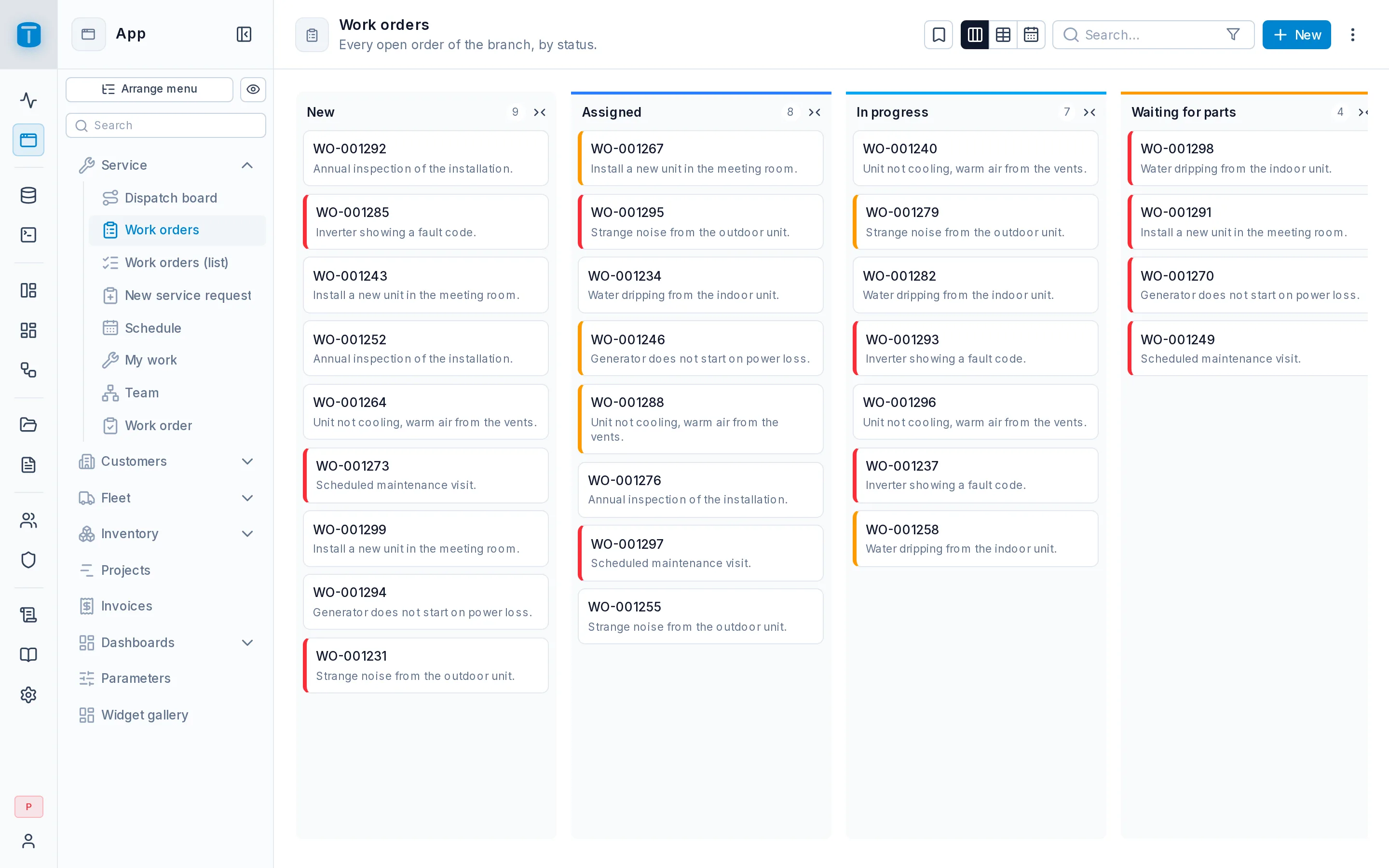

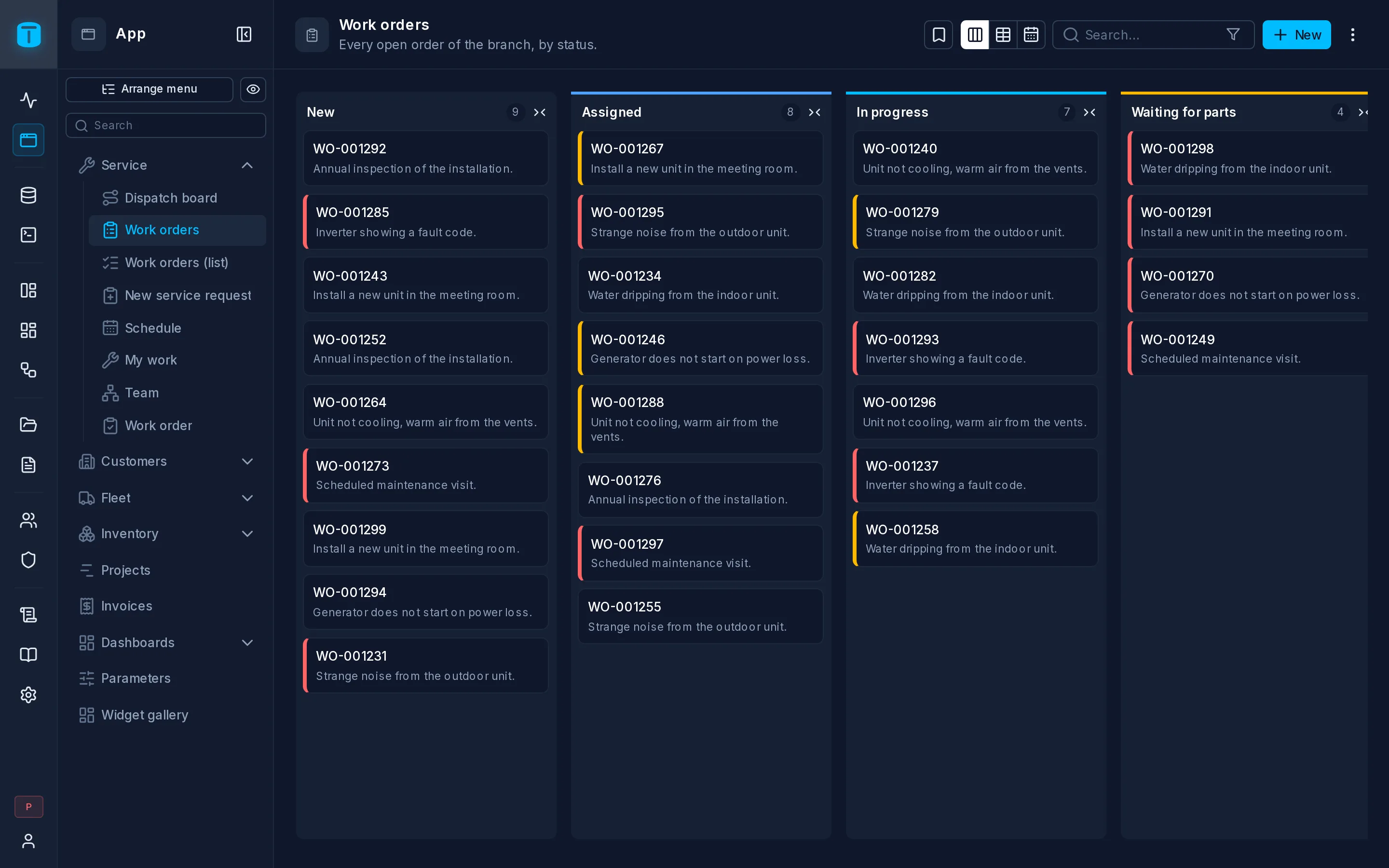

The Work orders kanban in the App, with the menu of the DataViews a dispatcher may open.

Types

The type is what you pick first in New DataView. The wizard groups them by what they're for:

Group	Type	What users get	At Acme
See and work with many rows	Table	a sortable, searchable grid	Invoices, Stock
	Cards	rows as cards, with an image	Equipment, with its photo
	Kanban	cards in lanes by a status	Work orders by status
	Calendar	rows on a calendar by a date	Technicians' visits
	Gantt	bars between a start and an end date	Installation projects
	Map	rows as pins	Sites; the live fleet map
	Tree	each row under its parent	Customer groups and subsidiaries
Enter or edit one record	Form	one record at a time	A technician closing an order
	Master-detail	a new record with its detail rows	A quote and its items
	Settings	a parameter table edited in place	Company parameters such as the default tax rate
Pages of your own	Custom	a page built from widgets, variables and code	The dispatch board
	External frame	an external https page inside the App	A supplier's portal

The list types can be combined: one DataView can offer the same work orders as a table, a kanban and a calendar, and the viewer switches between them. See Settings › Views.

How a DataView is made

Most DataViews have three parts:

A source: the table or view it reads. Views are always read-only in a DataView.
Columns: which of the source's columns the DataView reads and shows. How each column looks (its label, format, colors) comes from the table, set once in Database and used by every DataView.
A main view and a record form: a list type shows its rows as a grid, cards, a board, and so on; clicking a row opens its record form to edit it. Form and Master-detail are only a record form. Over a view, a list has no record form: a DataView never writes to a view.

Every record form is a page you can redesign in the Design form, with the same widgets, variables and code a Custom page uses. There is one form engine, not one per type.

What a DataView doesn't do

A DataView is presentation, not security:

Every read and write goes through the Data API, as the viewer. Their permissions, row filters, field grants and payload checks apply exactly as they would to any other client. A dispatcher who opens the Work orders kanban sees only their branch's orders, because that's what the row filter on work_orders allows.
Hiding is not denying. Leaving a column out of a DataView, filtering its rows or turning off its Delete button hides things from that screen, not from the API. To keep data from a role, use permissions.
PostgreSQL still decides. Required fields, defaults, CHECK constraints and foreign keys are read live from the database. A form anticipates them, and PostgreSQL has the last word when the record is saved.

From draft to the App

Create it with the wizard: Creating a DataView.
Adjust it in its Settings and, if you need to, lay out its form in the Design form. Every change is saved to the draft as you make it.
Publish it. Users only ever see a published version.
Grant it to the roles that use it, in Settings › Security. It appears in their App menu.

See Publishing.

In the admin

DataViews in the rail lists every DataView, with a search box, a filter by type and New DataView. Each one shows:

Mark	Means
Live	published, and the draft equals the live version
Changes	published, with unpublished changes in the draft
Draft	never published: no user sees it yet
crossed-out eye	not in the App menu; it still works where it's embedded and by its link
error icon	it names a column or a source that's gone (renamed or dropped outside TotalBase); the tooltip says what

Clicking a DataView opens its settings.

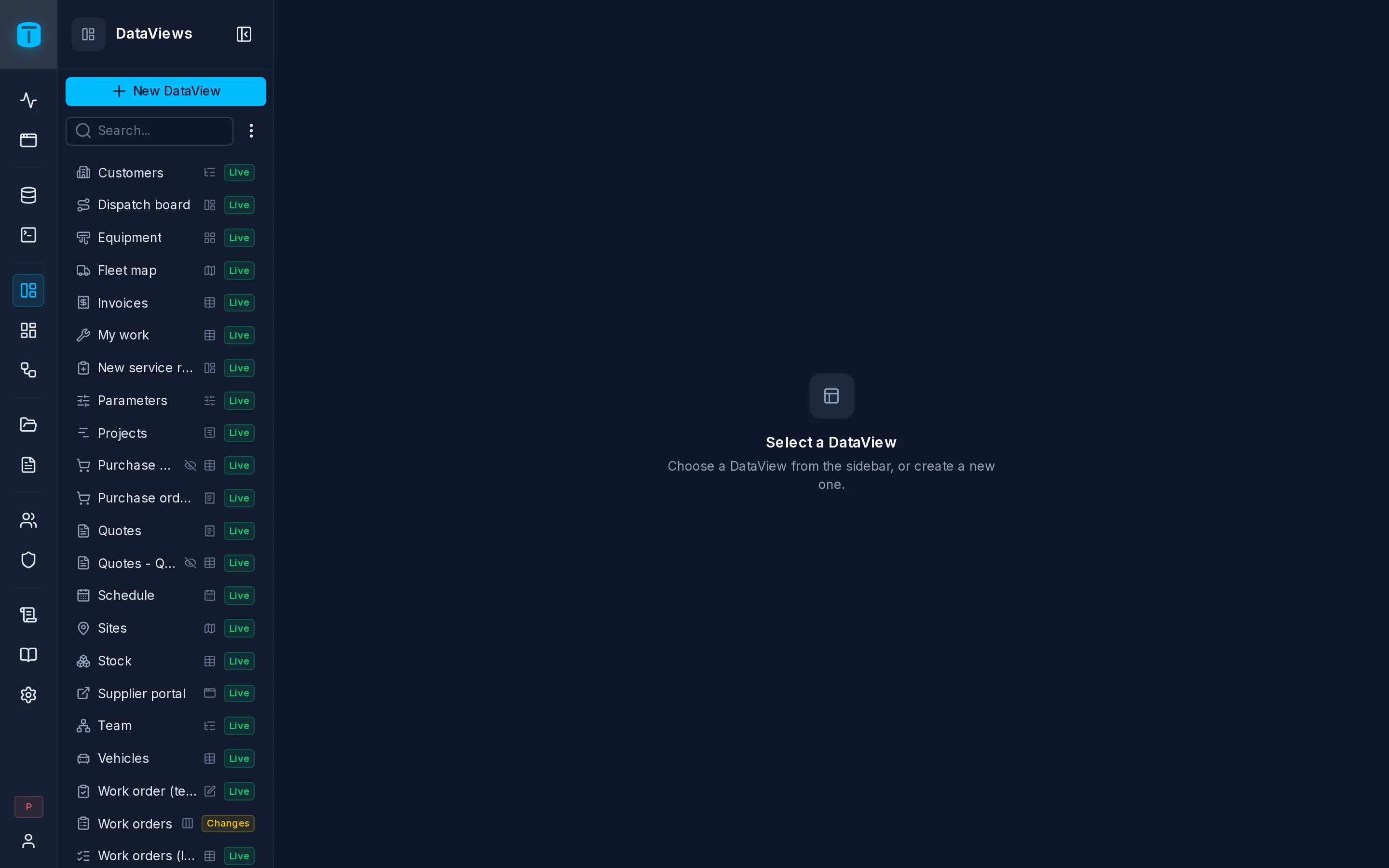

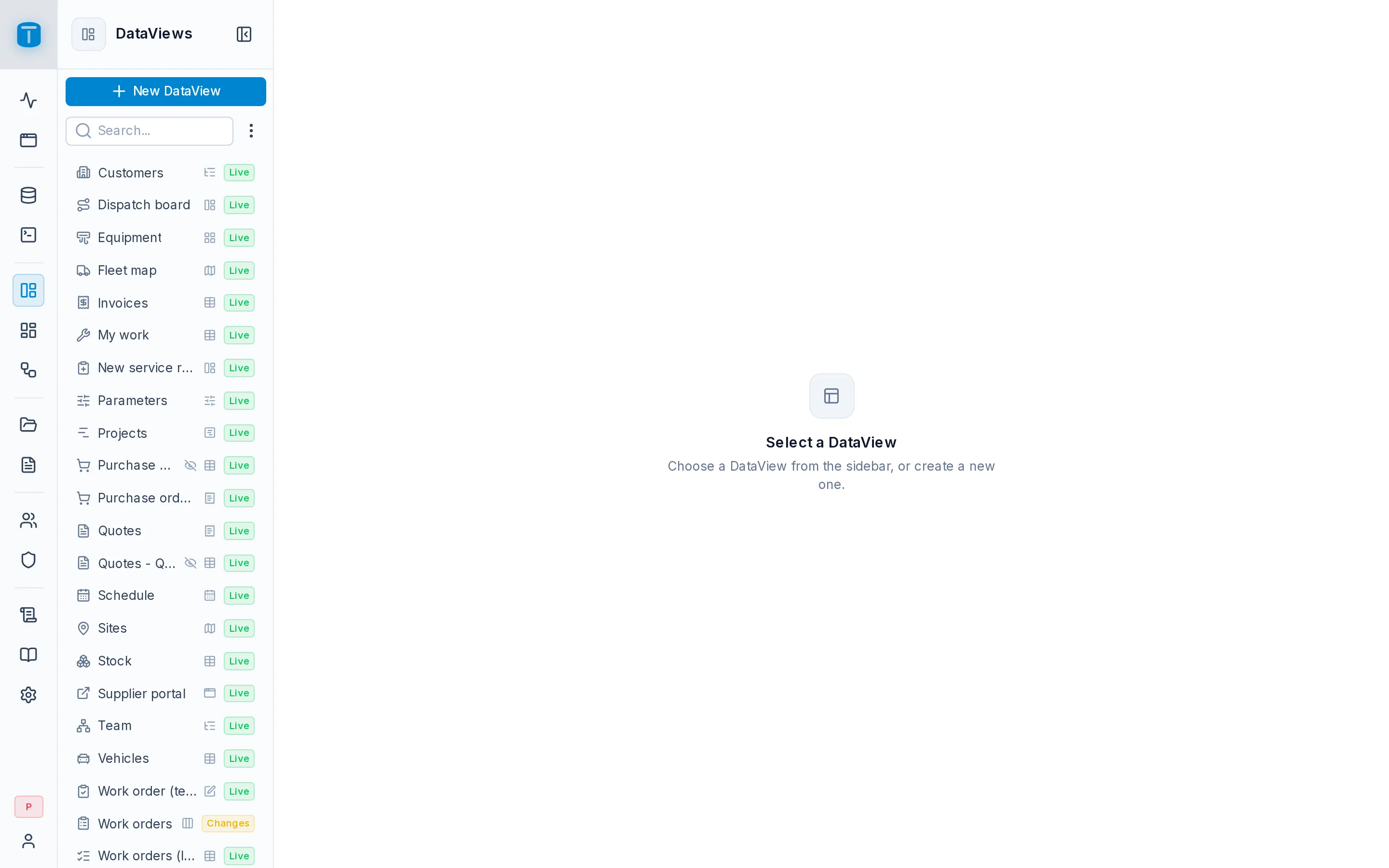

DataViews in the admin: Acme's DataViews, with their type icons and publish state.

Building and designing DataViews is for administrators. Agents build them the same way through the MCP server, with create_dataview, update_dataview and publish_dataview.

Next steps

Creating a DataView: the wizard, step by step.
Types: each type in detail.
Drafts and publishing.
