Variables

Variables are what a page knows and can do. Widgets show and change them; Code and formulas read and call them. There are four kinds:

You create Values, Resources and Calls in the Variables tab. The record is there on its own.

Each variable is dataview.vars.<name> in code and {{vars.<name>.<property>}} in formulas. Names start with a lowercase letter, use letters, digits and _, are up to 32 characters, and are unique in the DataView.

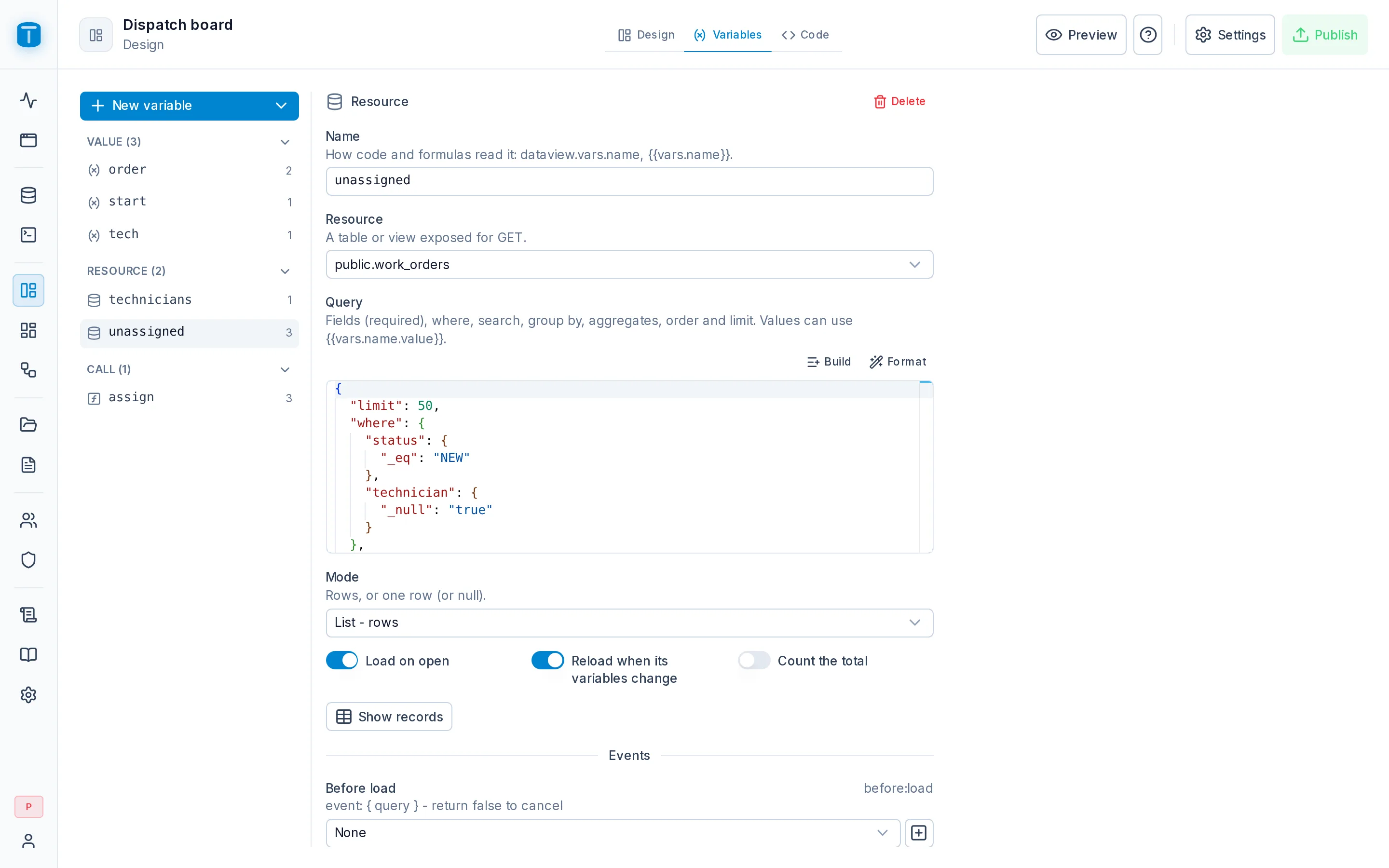

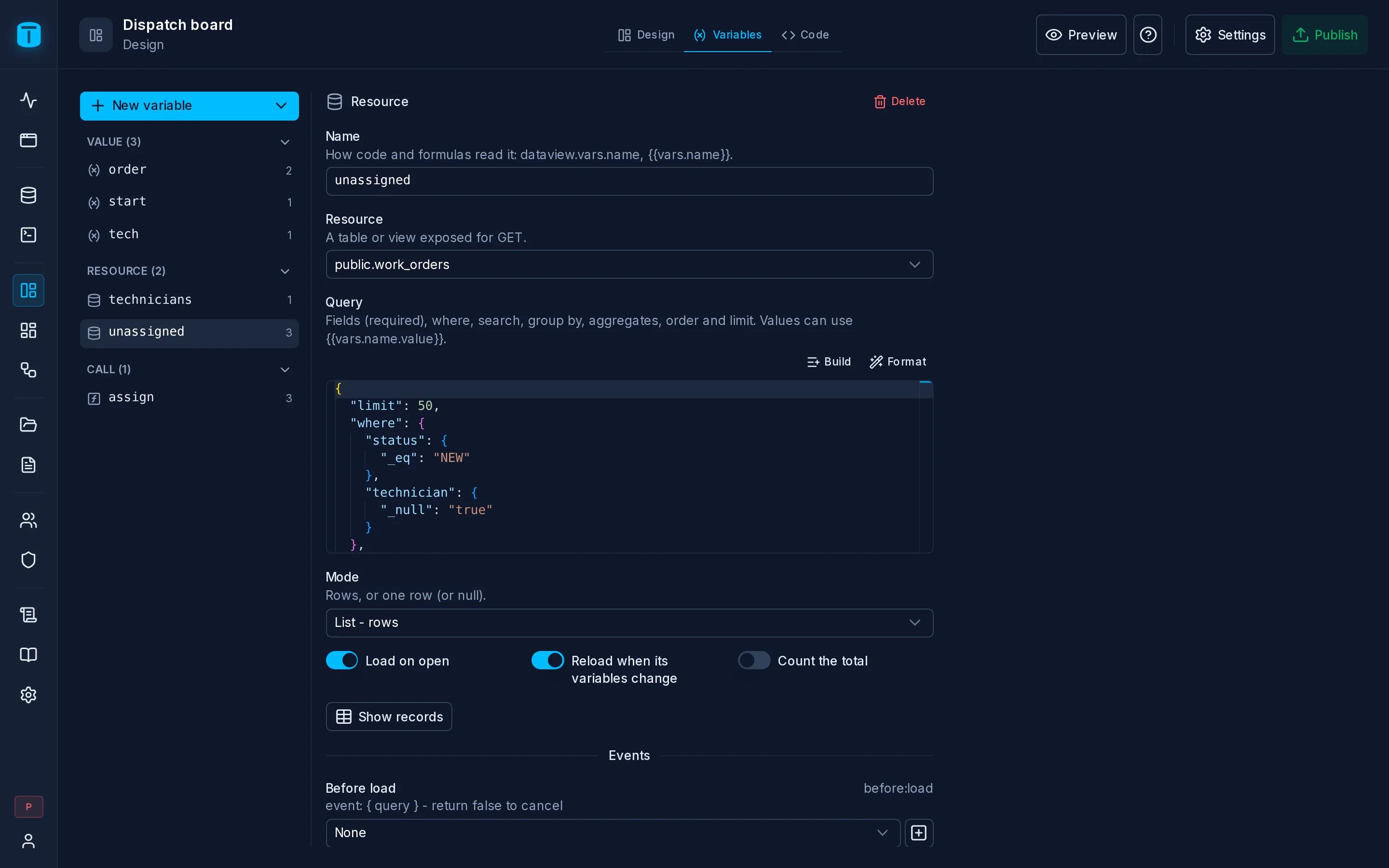

The Variables tab

On the left, the variables: record first, then the Values, Resources and Calls, each with how many widgets use it. A variable nothing uses is faded. On the right, the selected variable:

• its definition;
• Emits: each event it emits, with a function of the Code to call, and Create handler;
• Used by: the widgets and functions that reference it.

Renaming a variable updates the widgets bound to it, and warns you to rename it in the Code yourself: code is never rewritten for you. Deleting one that's in use asks first and says where.

Value

The page's state.

A widget bound to a Value changes it, and every other widget and formula that reads it follows. A date range holds either a calendar period (this month) or two dates; in a Resource's filter, a period is computed by PostgreSQL.

Resource

Rows read through the Data API, as the user.

Show records runs the query as you, so you see what it returns.

The Dispatch board's free technicians:

{
  "fields": "id,user.name,color",
  "where": {
    "branch": { "_eq": "{{vars.branch.value}}" },
    "active": { "_eq": "true" }
  },
  "order_by": "user.name",
  "limit": 50
}

• Values are bound, never pasted into the query. {{vars.branch.value}} is sent as a parameter, like any filter value from a client. A value starting with $ is refused, so a user can't turn a text into $USER.*.
• An unset value is no filter. While no branch is chosen, that condition is left out and every branch shows. An empty filter widget shows everything.
• All or nothing. If the user may not read a column the query names, the whole Resource fails, rather than silently dropping it. The Design form warns beforehand, naming the roles that open the DataView but lack the grant.
• Latest wins. A slow response older than the latest request is discarded.
• Data only. A Resource doesn't say how its rows look: two widgets on the same Resource share its rows, page and search, and each shows them its own way.

Call

Something the page runs, as the user.

The Dispatch board's assign call runs the function assign_work_order, which assigns the order and schedules its visit in one transaction:

{
  "data": {
    "p_work_order": "{{vars.selectedOrder.value}}",
    "p_technician": "{{vars.technician.value}}",
    "p_start": "{{vars.start.value}}"
  }
}

A Call goes through the same routes as any client: functions through /api/{schema}/function/{name}, workflows through /api/workflows/{slug}/run, table writes through the Data API, with row filters, payload checks, audit and events. A page never has a write path of its own.

A failed call keeps the API's errors in error, and execute() rejects with the first error's message. A function that returns a file opens it with dataview.openFile(result).

record

A page with a record (a record form, a Form, a Master-detail, or a Custom page with a record table) has record: one row, loaded, edited and saved through the Data API.

• What a save sends: on a new record, every value set; on an existing one, only what changed. A refused save leaves the record as it was and shows PostgreSQL's reason on the field.
• Live, never copied: which columns the user may read and write, which are required, a CHECK list's values, are read each time the page opens.
• A form field bound to a column edits record.data.<column>.

The page's address opens a row with ?pk=; without it, the page starts a new record.

Next steps

• Code: handle the variables' events and call their methods.
• Query language: the filter grammar a Resource's where uses.
